Serial Communication Control Panel
Still an important and relevant system today, EntryPass Serial Communicators enables transmission of information between computers or between computers and peripheral devices one bit at a time over a single line, either synchronous or asynchronous. Our range of Serial Communication devices varies from integrated controllers with built-in readers to advanced 2 readers control panel and even hybrid input/output control panels to suit your specific needs and requirements.
Serial Communication Control Panel
Still an important and relevant system today, EntryPass Serial Communicators enables transmission of information between computers or between computers and peripheral devices one bit at a time over a single line, either synchronous or asynchronous. Our range of Serial Communication devices varies from integrated controllers with built-in readers to advanced 2 readers control panel and even hybrid input/output control panels to suit your specific needs and requirements.
High Performance
High reliability, efficiency and integrated intelligent multi-application control panel targeted for physical access control industry. Built in Freescale ColdFire microcontroller that able to fulfill most demanding requirement in physical access control environment
Firmware Upgrade via Application Server
The simplest way to have the controller firmware through apllication server as upgrade tool
Firmware Upgrade via Application Server
The simplest way to have the controller firmware through apllication server as upgrade tool
Door interlocking
One of the most secure methods of access control as two doors connected with electronic locks where one side door cannot be opened until the other has properly closed
Door interlocking
One of the most secure methods of access control as two doors connected with electronic locks where one side door cannot be opened until the other has properly closed
Unlimited Access level
Able to support more unique sets of access level in groups in order to proper assign out individually based on more number of access rules and condition with in the area
Unlimited Access level
Able to support more unique sets of access level in groups in order to proper assign out individually based on more number of access rules and condition with in the area
Dynamic Operation Profile
Multiple default profile setting in order to allow implementation to switch between doors, turnstile or car park in order to save time and minimise the setting errors
Dynamic Operation Profile
Multiple default profile setting in order to allow implementation to switch between doors, turnstile or car park in order to save time and minimise the setting errors
Complete Features Overview
Support Single Door / 2 Doors / 4 In Doors mode
Support Barrier Mode (Support Turnstile Mode)
Support Dynamic Reader Location
Compatible with Various Reader Technologies
8 Configurable Digital / Supervised Inputs
Event Based Triggering (EBT)
Unlimited Access Level
Onboard & Cross-Board Interlocking
User Counting (Card Holder / Car Park)
Reader Output Control
Dynamic Storage Allocation
Dynamic Operation Profile
Support 30,000 Users And 80,000 Events Memory
System Configuration Diagram

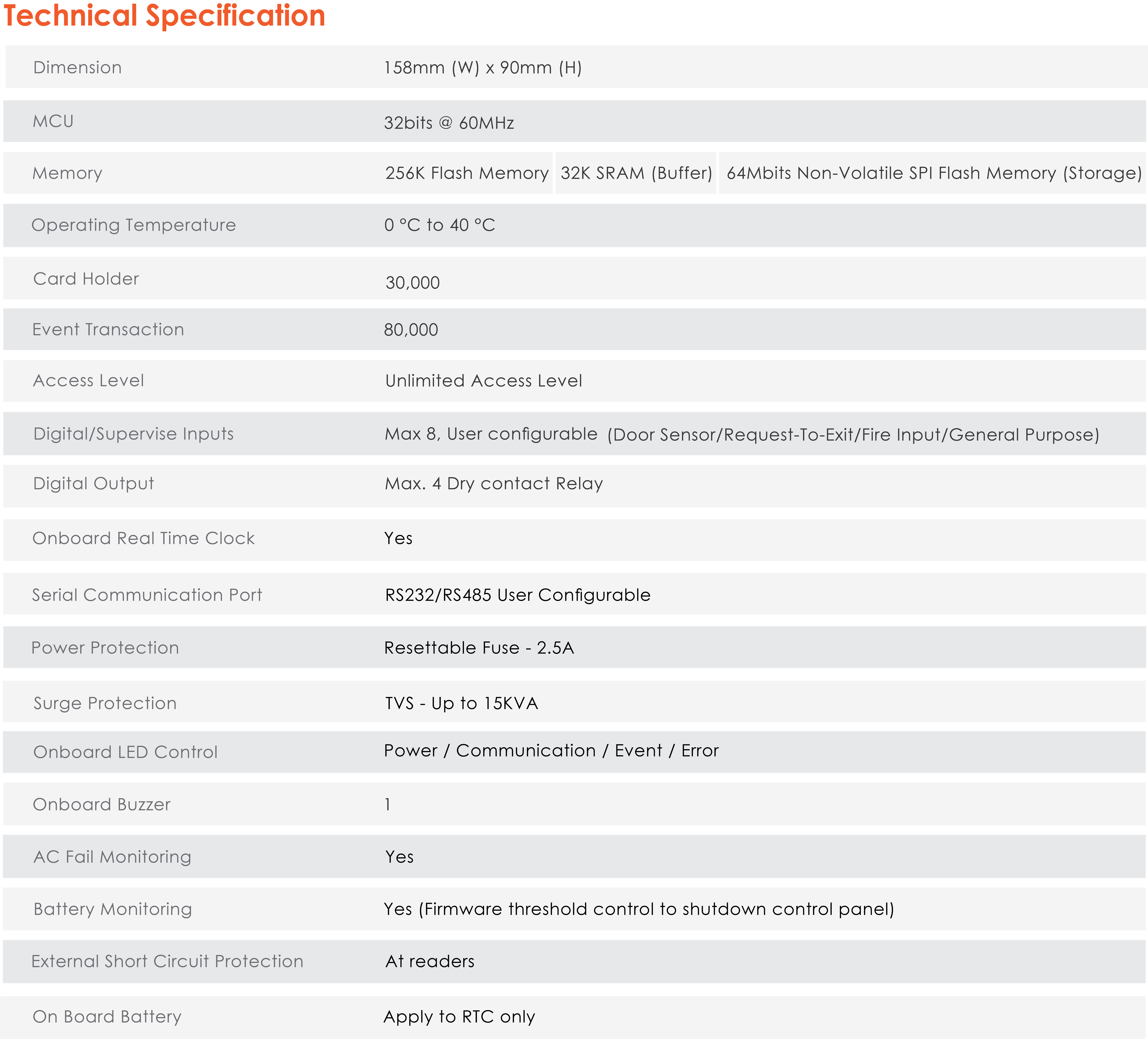

Technical Specifications
System Configuration Diagram
Technical Specifications
